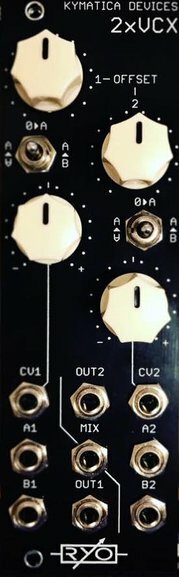

Kymatica Devices 2xVCX - A dual VCA / Crossfader / 4QM



The first collaboration between RYO and KYMATICA DEVICES, a dual VCA / Crossfader / Four-Quadrant-Multiplier (Ringmodulator / VC-polarizer) with mix output. The output of the first channel is normalized to the input of the second. Works for audio as well as CV.



Tune in, multiply, fade out!



Switch position upside down A > A

In this mode input A and the CV input acts as a Four Quadrand Multiplier. It will do ringmodulation and voltage controlled polarization (bipolar VCA).



Switch position 0 > A

In this mode input A and the CV input will act as a normal linear VCA.



Switch position B > A

In this mode the CV input will control a crossfade from input B to input A.



Bills of material and calibration instructions.



Kits and price

Kits comes supplied with PCBs, front panel (PCB material), component kit, power cable and mounting screws. Solder and tools are not supplied.



Recommended Retail Price in SEK excl. VAT/sales tax.

SEK 1346 for the DIY kit

Aassembled module TBA

SEK 428 for the PCB only*

SEK 100 for the Panel only*





Basic specifications

Width: 8 hp

Depth: 40 mm.

Power: +12V 34 mA / -12V 32 mA



* Regarding our PCB/panel only offerings, please note that these are mainly offered due to popular demand from the experienced DIY community. Hence we are counting on that you know what you are doing and how to source parts. If you feel the least bit uncertain, please consider going for the kit.
