Airtenuator I



Download assembly manual here. (1MB)

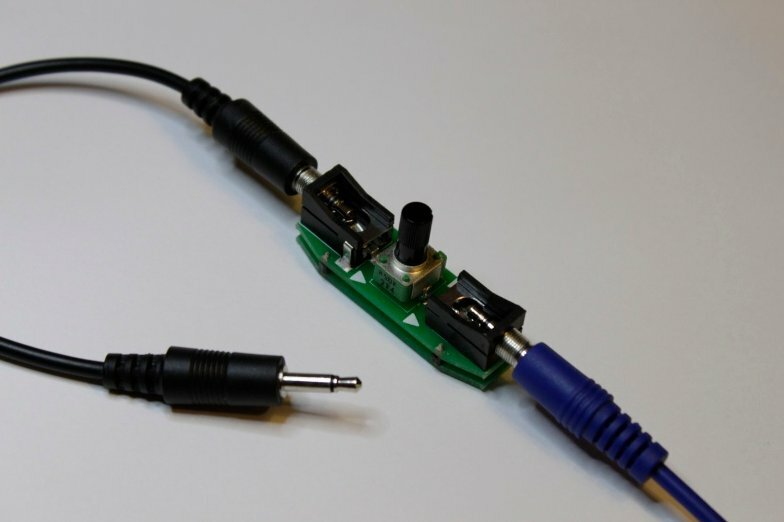

The RYO Airtenuator I is a floating passive attenuator you connect between two modules in your rack via patch cables, acting as a volume/modulation depth control between the source and destination.

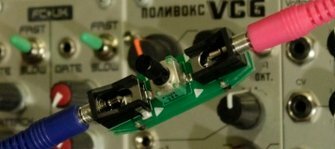

Instead of being built into a module that sits mounted in your modular case these attenuators "float" in the air held up firmly by the two cables connected to it, thanks to the firm fit it is possible to make precise adjustments one-handed and they can also easily be twisted into an angle that works best for the specific task and placement in your patch.



One handed operation is tested on patch cables from Ad-Infinitum, Erthenvar (standard and IV) and TipTop Stackcables.



The Airtenuator I will be available as a beginner friendly DIY kit, bare PCB* and also assembled and ready to go.





Recommended retail price in SEK excl. VAT/sales tax.

159 SEK for Airtenuator I DIY kit (3 units in one kit)

72 SEK for Airtenuator I PCB only (3 units on the PCB)

108 SEK for one assembled Airtenuator I

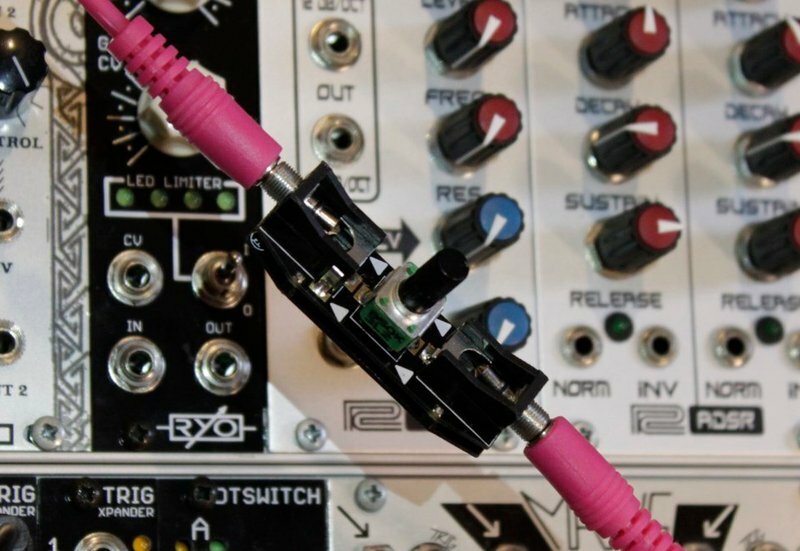

The production version have black PCB's.

Download assembly manual here. (1MB)



Basic specifications

Length: 58 mm

Width: 16 mm

Power: 0.2 mA @ 10V signal +/-20% from the output jack

Impedance: 50k +/-20% (variable impedance if used backwards)



* Regarding our PCB/panel only offerings, please note that these are mainly offered due to popular demand from the experienced DIY community. Hence we are counting on that you know what you are doing and how to source parts. If you feel the least bit uncertain, please consider going for the kit.
